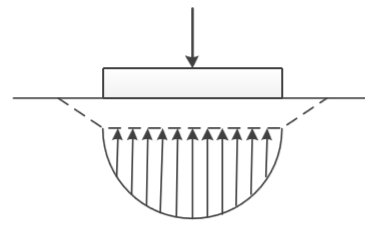

The contact pressure and settlement distribution for a footing are shown in the figure.
The figure corresponds to a
(A) rigid footing on granular soil
(B) flexible footing on granular soil
(C) flexible footing on saturated clay
(D) rigid footing on cohesive soil
The contact pressure and settlement distribution for a footing are shown in the figure.
The figure corresponds to a
(A) rigid footing on granular soil
(B) flexible footing on granular soil
(C) flexible footing on saturated clay
(D) rigid footing on cohesive soil
