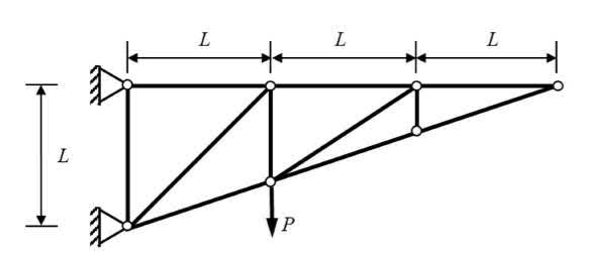

Consider the planar truss shown in the figure (not drawn to the scale)


Neglecting self-weight of the members, the number of zero-force members in the
truss under the action of the $\operatorname{load} P$, is
(A) 6
(B) 7
(C) 8
(D) 9


Question ID - 157104 | Toppr Answer

Consider the planar truss shown in the figure (not drawn to the scale)


Neglecting self-weight of the members, the number of zero-force members in the
truss under the action of the $\operatorname{load} P$, is
(A) 6
(B) 7
(C) 8
(D) 9

1 Answer - 5876 Votes

3537

Answer Key : (C) -

8
