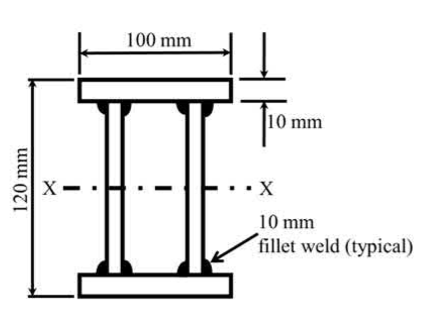

The flange and web plates of the doubly symmetric built-up section are connected by continuous $10 \mathrm{~mm}$ thick fillet welds as shown in the figure (not drawn to the scale). The moment of inertia of the section about its principal axis $\mathrm{X}-\mathrm{X}$ is $7.73 \times 10^{6} \mathrm{~mm}^{4}$. The permissible shear stress in the fillet welds is $100 \mathrm{~N} / \mathrm{mm}^{2}$. The design shear strength of the section is governed by the capacity of the fillet welds.
.png)
The maximum shear force (in kN, round off to one decimal place) that can be carried by the section, is
The maximum shear force (in kN, round off to one decimal place) that can be carried by the section, is
Question ID - 1 | SaraNextGen Top Answer The flange and web plates of the doubly symmetric built-up section are connected by continuous $10 \mathrm{~mm}$ thick fillet welds as shown in the figure (not drawn to the scale). The moment of inertia of the section about its principal axis $\mathrm{X}-\mathrm{X}$ is $7.73 \times 10^{6} \mathrm{~mm}^{4}$. The permissible shear stress in the fillet welds is $100 \mathrm{~N} / \mathrm{mm}^{2}$. The design shear strength of the section is governed by the capacity of the fillet welds.
The maximum shear force (in kN, round off to one decimal place) that can be carried by the section, is
The flange and web plates of the doubly symmetric built-up section are connected by continuous $10 \mathrm{~mm}$ thick fillet welds as shown in the figure (not drawn to the scale). The moment of inertia of the section about its principal axis $\mathrm{X}-\mathrm{X}$ is $7.73 \times 10^{6} \mathrm{~mm}^{4}$. The permissible shear stress in the fillet welds is $100 \mathrm{~N} / \mathrm{mm}^{2}$. The design shear strength of the section is governed by the capacity of the fillet welds.
The maximum shear force (in kN, round off to one decimal place) that can be carried by the section, is
