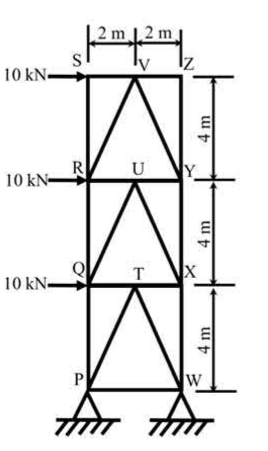

The plane truss has hinge supports at $\mathrm{P}$ and $\mathrm{W}$ and is subjected to the horizontal
forces as shown in the figure (not drawn to the scale)

Representing the tensile force with '+' sign and the compressive force with '-' sign,
the force in member XW (in kN, round off to the nearest integer), is



Question ID - 1 | SaraNextGen Top Answer

The plane truss has hinge supports at $\mathrm{P}$ and $\mathrm{W}$ and is subjected to the horizontal
forces as shown in the figure (not drawn to the scale)

Representing the tensile force with '+' sign and the compressive force with '-' sign,
the force in member XW (in kN, round off to the nearest integer), is

1 Answer
127 votes
Answer Key / Explanation : (–31 to –29) -

–31 to –29

127 votes


127
