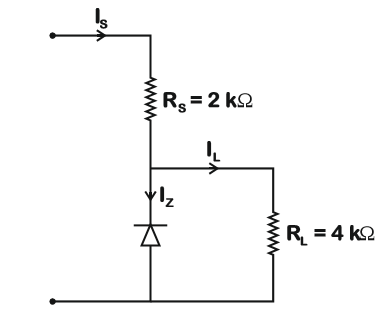

Figure shows a DC voltage regulator circuit, with a Zener diode of breakdown voltage = 6 V. If the unregulated input voltage varies between 10 V to 16 V, then what is the maximum Zener current?
.png)
a)
7.5 mA
b)
1.5 mA
c)
2.5 mA
d)
3.5 mA
a)
7.5 mA
b)
1.5 mA
c)
2.5 mA
d)
3.5 mA
Question ID - 51575 | SaraNextGen Top Answer Figure shows a DC voltage regulator circuit, with a Zener diode of breakdown voltage = 6 V. If the unregulated input voltage varies between 10 V to 16 V, then what is the maximum Zener current?
a)
7.5 mA
b)
1.5 mA
c)
2.5 mA
d)
3.5 mA
Figure shows a DC voltage regulator circuit, with a Zener diode of breakdown voltage = 6 V. If the unregulated input voltage varies between 10 V to 16 V, then what is the maximum Zener current?
|
a) |
7.5 mA |
b) |
1.5 mA |
|
c) |
2.5 mA |
d) |
3.5 mA |
1 Answer
127 votes
Answer Key / Explanation : (d) -
is maximum when input voltage is 16 V.
IS =
= 5 mA
IL =
= 1.5 mA
Iz(max) = IS
IL = 3.5 mA
